Optimec TSC3

The Optimec TSC3 is designed to provide temperature, filtration and sanitisation control to Optimec JCF, JCM and SAG instruments.

The TSC3 uses UV light sanitising technology to reduce microbiological loading and maintain cleanliness of saline within the measurement wet cell.

The TSC3 is electronically controlled with the required temperature being set by the user within the range 15 - 40°C (+/- 0.5°C)
Both UV lamp life and filter life are electronically monitored ensuring that that performance of the TSC3 is optimally maintained.

Due to the impact of temperature on contact lens diameter and thickness, effective and consistent control is paramount.

CLICK HERE for The Impact of Temperature Control on Contact Len Measurement Report.

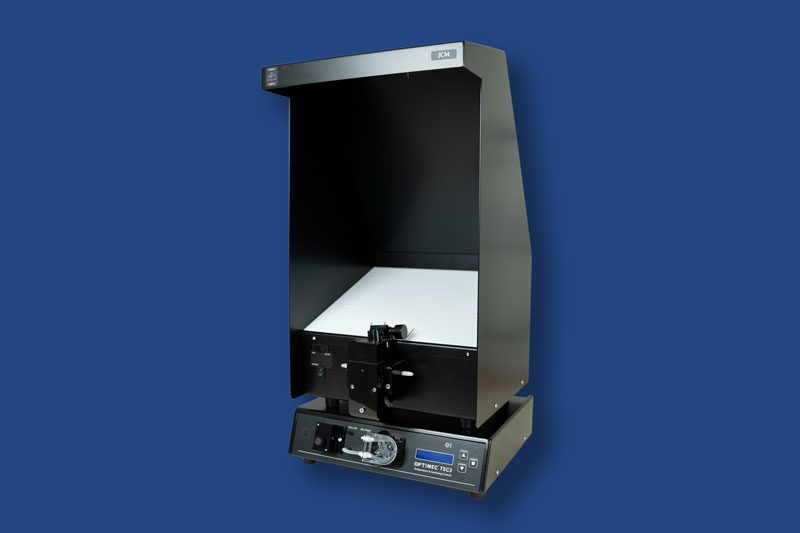

The TSC3 can be placed under or alongside a Optimec JCF, JCM and SAG instrument and is connected simply to their wet cells.
  • UV sanitisation
  • Full electronic temperature control 15-40°C (+/- 0.5°C)
  • Wet cell saline filtration
  • UV lamp and filter management
  • JCF, JCM, SAG compatible

Optimec TSC3 Product Specification

Dimensions: Height 100mm, Width 384mm, Depth 268mm
Weight: 7kg
Power consumption: 86 watts
Temperature control range: 15 - 40°C
Temperature variable range: +/- 0.5°C
Ambient temperature: Cooling to a maximum of 12°C below ambient temperature
Consumables: Filters, tubing, UV lamps, tweezers
