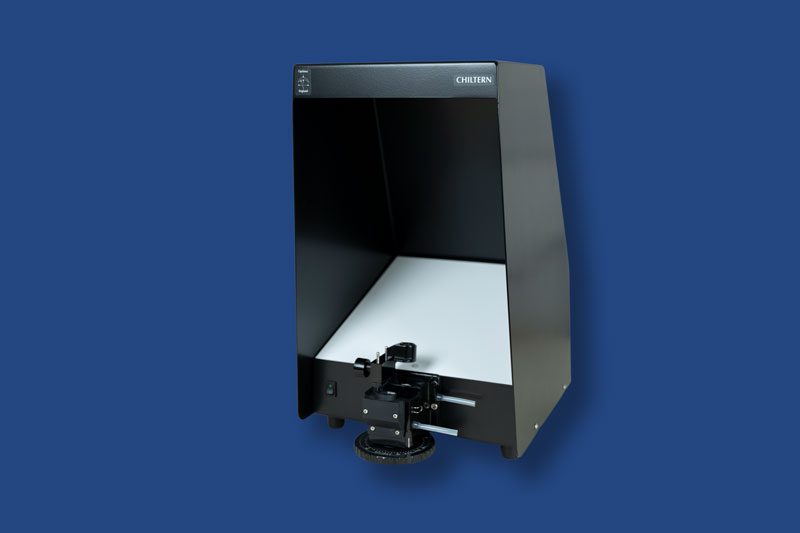

Optimec Chiltern

The Optimec Chiltern is a scaled down version of the JCF instrument with a smaller measurement wet cell and lower image magnification.

Designed as an entry level instrument, with simple optics and without temperature control capability, it provides BCOR and diameter measurements of soft contact lenses, as well as centre thickness check capability.

A user-friendly lens locating platform within the wet cell makes positioning of the contact lens for BCOR measure fast and simple.

A tilted diameter measurement graticule, with integrated lens support “V”, quickly settles the contact lens in position for rapid measurement and inspection.
  • Diameter measurement
  • BCOR measurement
  • Centre thickness check
  • Surface and edge inspection
  • Small footprint

Optimec Chiltern Product Specification

Dimensions: Height 485mm, Width 296mm, Depth 374mm
Weight: 11kg
Power consumption: 15 watts
Diameter range: 6 - 16mm
Diameter accuracy: +/- 0.025mm
Diameter graticule increments: 0.1mm divisions (0.05mm graticule divisions available on Chiltern/S instrument variant)
Magnification diameter view: x16 (nominal)
BCOR range: 6.9 - 9.5mm
BCOR accuracy: +/- 0.02mm
Magnification BCOR view: x17 (nominal)
Consumables: 1 x 12V DC 6.6W LED light engine, tweezers
Calibration: BCOR test pieces, Diameter test pieces
