INSTRUMENTS

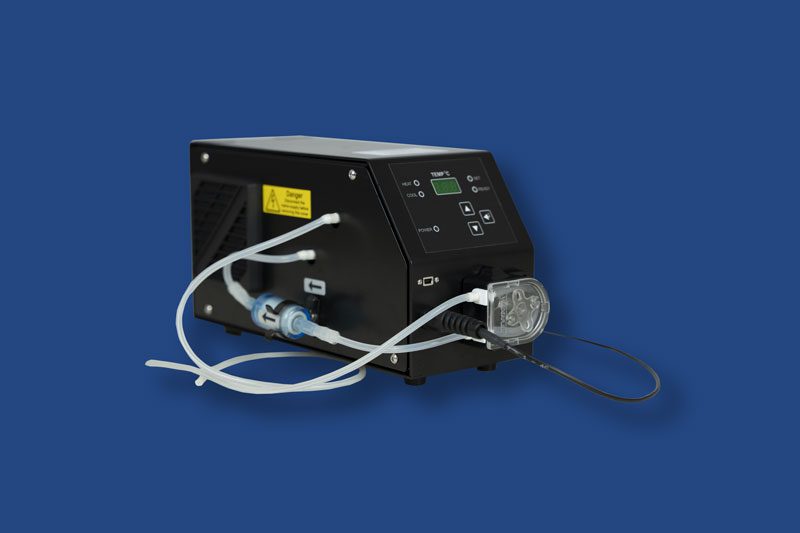

Optimec TC20i

The Optimec TC20i is designed to provide temperature and filtration control to Optimec JCF, JCM and SAG instruments.

The TC20i is electronically controlled with the required temperature being set by the user within the range 15 - 40°C (+/- 0.5°C)
Due to the impact of temperature on contact lens diameter and thickness, effective and consistent control of saline in the measurement wet cell is paramount.

CLICK HERE for The Impact of Temperature Control on Contact Len Measurement Report.

With its small footprint, the TC20i fits neatly alongside Optimec JCF, JCM and SAG instruments and is connected simply to their wet cells.

  • Diameter measurement
  • Full electronic temperature control 15-40°C (+/- 0.5°C)
  • Wet cell saline filtration
  • Compact
  • JCF, JCM, SAG compatible

Optimec TC20i Product Specification

Dimensions: Height 146mm, Width 147mm, Depth 230mm
Weight: 4kg
Power consumption: 50 watts
Temperature control range: 15 - 40°C
Temperature variable range: +/- 0.5°C
Ambient temperature: Cooling to a maximum of 12°C below ambient temperature
Consumables: Filters and tubing, tweezers

Product Gallery
