Optimec JCF

The Optimec JCF is the industry standard instrument for use in laboratory and quality assurance departments.

Designed to provide extremely accurate BCOR and diameter measurements of soft contact lenses, as well as a centre thickness check capability.

Manufactured using high acuity optics, the JCF allows clear imaging of the surface and edges of contact lenses under examination.
A user-friendly lens locating platform within the wet cell makes positioning of the contact lens for BCOR measure fast and simple.

A tilted diameter measurement graticule, with integrated lens support “V”, quickly settles the contact lens in position for rapid measurement and inspection.
  • Diameter measurement
  • BCOR measurement
  • Centre thickness check
  • Surface and edge inspection

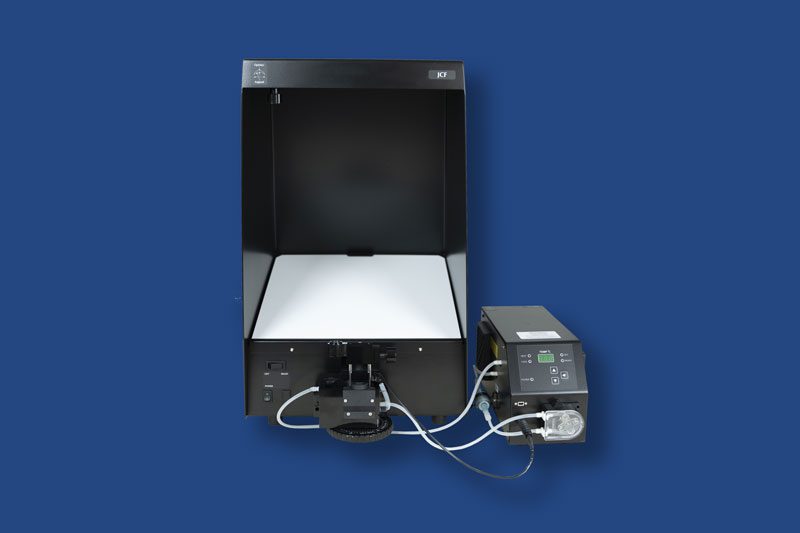

  • Compatible with Optimec TC20i, providing temperature control of the wet cell saline
  • Compatible with Optimec TSC3, providing temperature control and UV sanitisation of the wet cell saline

Optimec JCF Product Specification

Dimensions: Height 589mm, Width 353mm, Depth 350mm
Weight: 16kg
Power consumption: 15 watts
Diameter range: 6 - 16mm (up to 20mm available on JCF/20 instrument variant)
Diameter accuracy: +/- 0.025mm
Diameter graticule increments: 0.1mm divisions (0.05mm graticule divisions available on JCF/S instrument variant)
Magnification diameter view: x17 (nominal)
BCOR range: 6.9 - 9.5mm
BCOR accuracy: +/- 0.02mm
Magnification BCOR view: x20 (nominal
Consumables: 2 x 12V DC 6.6W LED light engines, dustcovers, tweezers
Calibration: BCOR test pieces, Diameter test pieces
