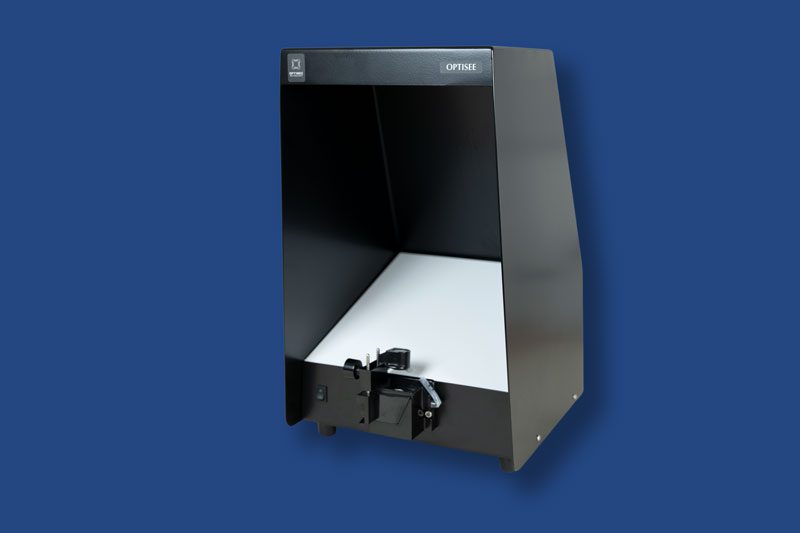

Optimec Optisee

The Optimec Optisee is based on the Chiltern instrument without BCOR measurement capability.

An entry level instrument, with simple optics and without temperature control capability, the Optisee provides surface and edge inspection as well as diameter measurement with the optional graticule.

The tilted diameter measurement graticule, with integrated lens support “V”, quickly settles the contact lens in position for rapid measurement and inspection.

Diameter measurement (optional)
x13 and x16 nominal magnification options
Surface and edge inspection
Small footprint

Optimec Optisee Product Specification

Dimensions: Height 485mm, Width 296mm, Depth 374mm
Weight: 11kg
Power consumption: 15 watts
Magnification diameter view: x13 nominal or x16 nominal
Consumables: 1 x 12V DC 6.6W LED light engine, Diameter test piece, tweezers

Product Gallery
