Optimec JCF/F

The Optimec JCF/F is based on the industry standard JCF instrument, for use in laboratory and quality assurance departments, with the addition of a peristaltic pump and disposable filter, to allow the circulation and filtration of the saline within the measurement wet cell.

Designed to provide extremely accurate BCOR and diameter measurements of soft contact lenses, as well as centre thickness check capability.

Manufactured using high acuity optics, the JCF/F allows clear imaging of the surface and edges of contact lenses under examination.

A user-friendly lens locating platform within the wet cell makes positioning of the contact lens for BCOR measure fast and simple.

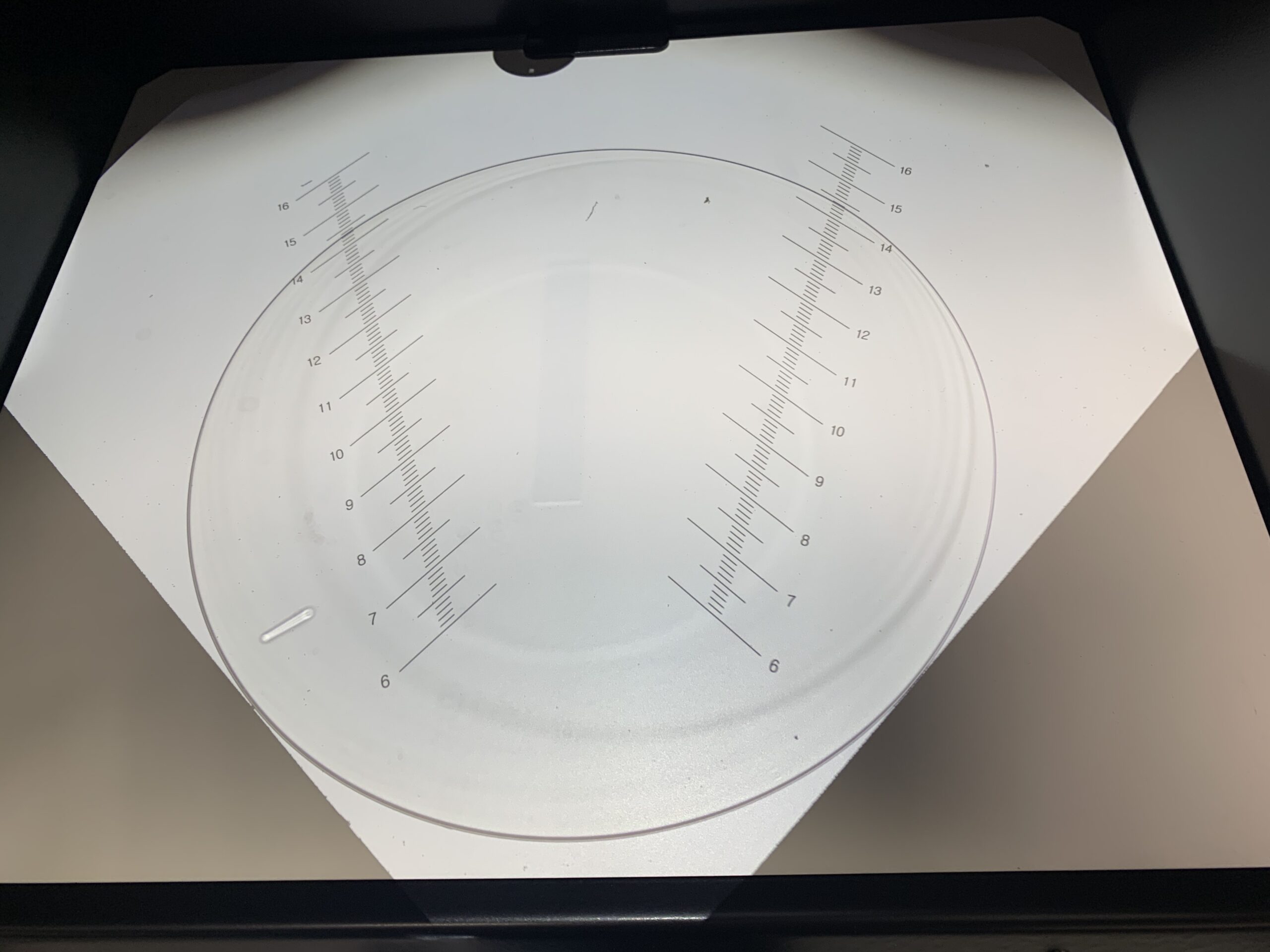

A tilted diameter measurement graticule, with integrated lens support “V”, quickly settles the contact lens in position for rapid measurement and inspection.
  • Diameter measurement
  • BCOR measurement
  • Centre thickness check
  • Surface and edge inspection
  • Includes wet cell saline filtration

Optimec JCF/F Product Specification

Dimensions: Height 589mm, Width 374mm, Depth 350mm
Weight: 16kg
Power consumption: 19 watts
Diameter range: 6 - 16mm (up to 20mm available on JCF/F/20 instrument variant)
Diameter accuracy: +/- 0.025mm
Diameter graticule increments: 0.1mm divisions (0.05mm graticule divisions available on JCF/F/S instrument variant)
Magnification diameter view: x17 (nominal)
BCOR range: 6.9 - 9.5mm
BCOR accuracy: +/- 0.02mm
Magnification BCOR view: x20 (nominal)
Consumables: Filters, tubing, 2 x 12V DC 6.6W LED light engines, tweezers
Calibration: BCOR test pieces, Diameter test pieces
